VSWR
Per the NPPROUW datasheet, VSWR HPOL stays < 2.0 across 4.9–7.2 GHz.
NPPROUW

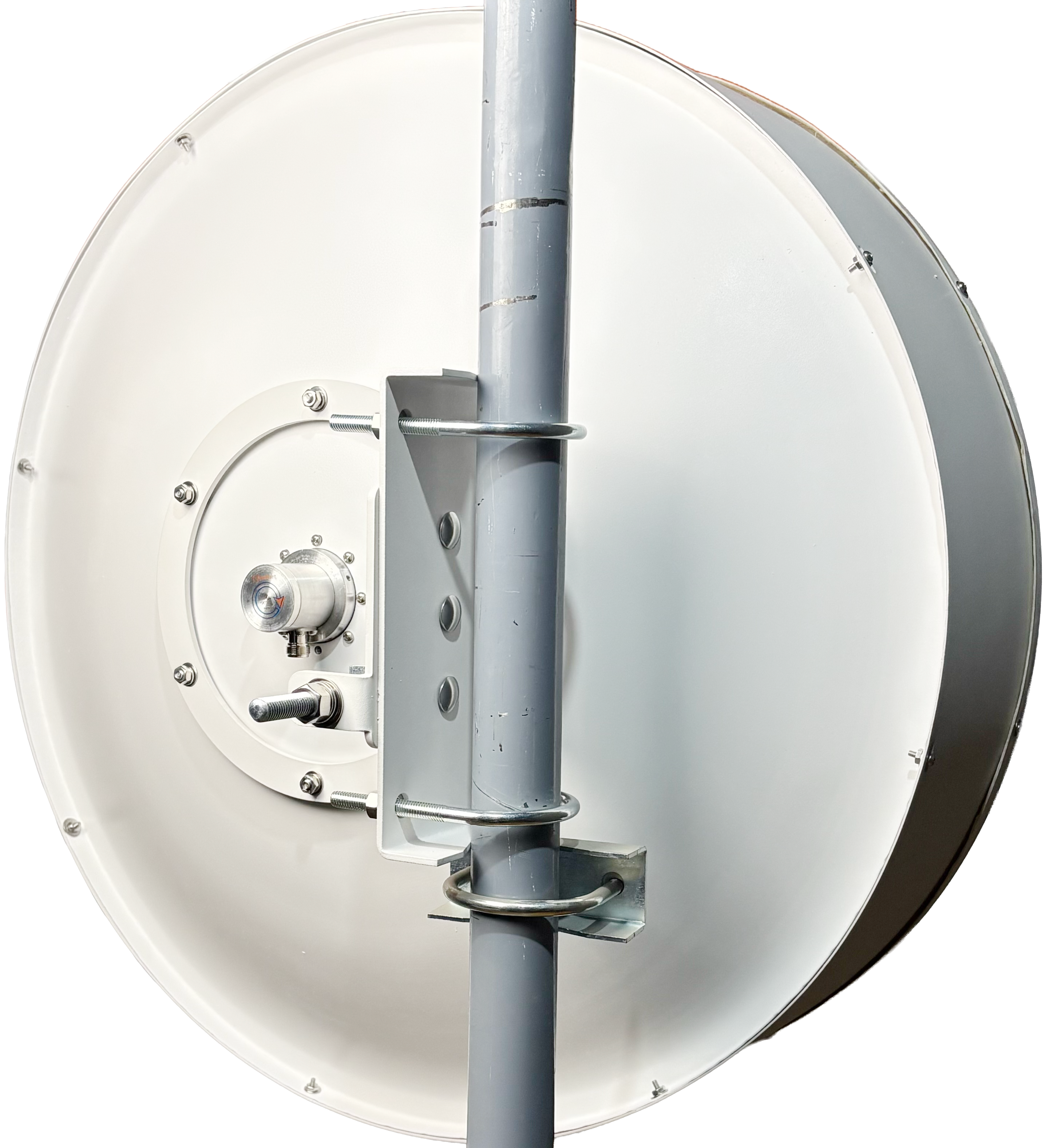

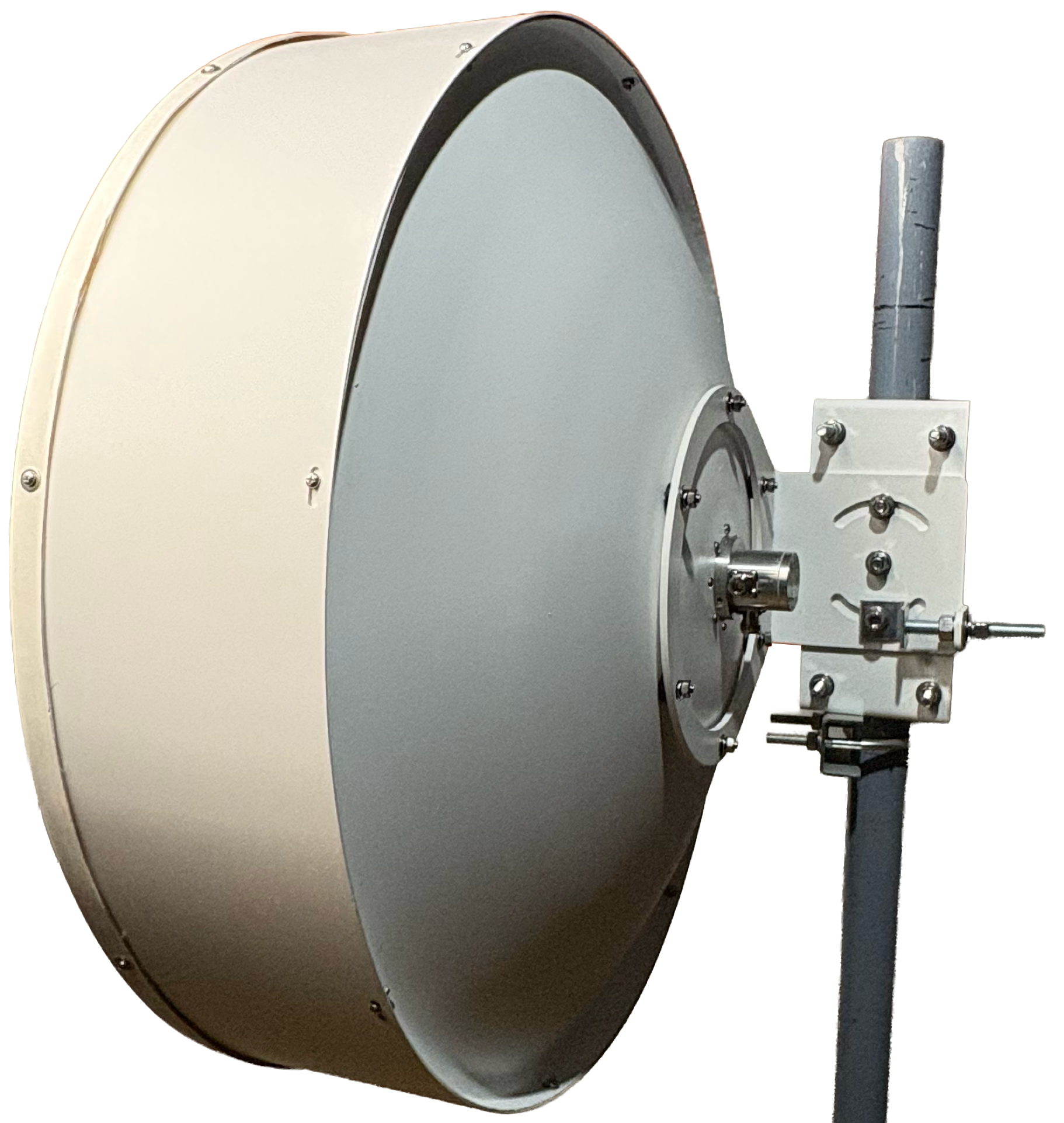

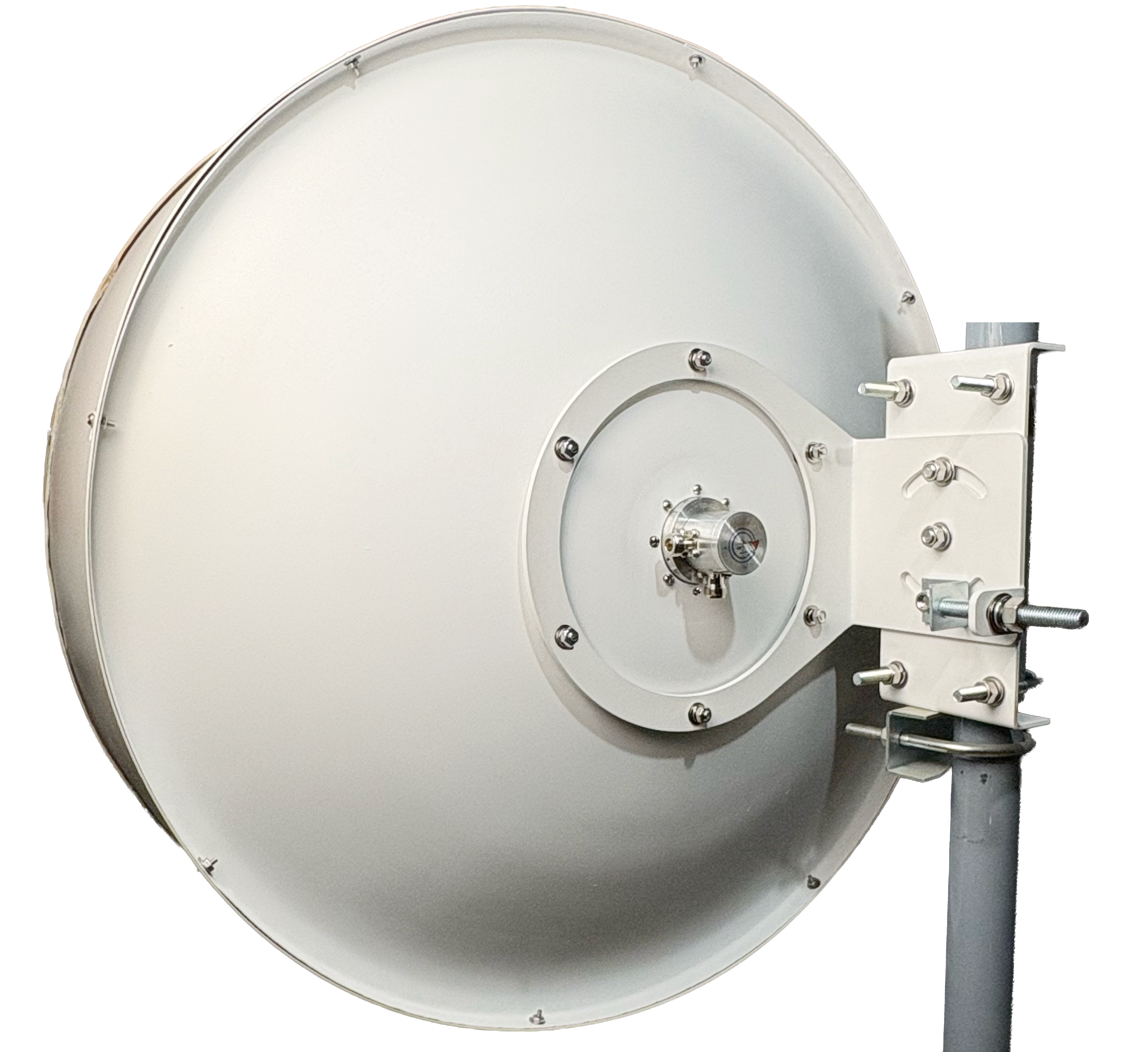

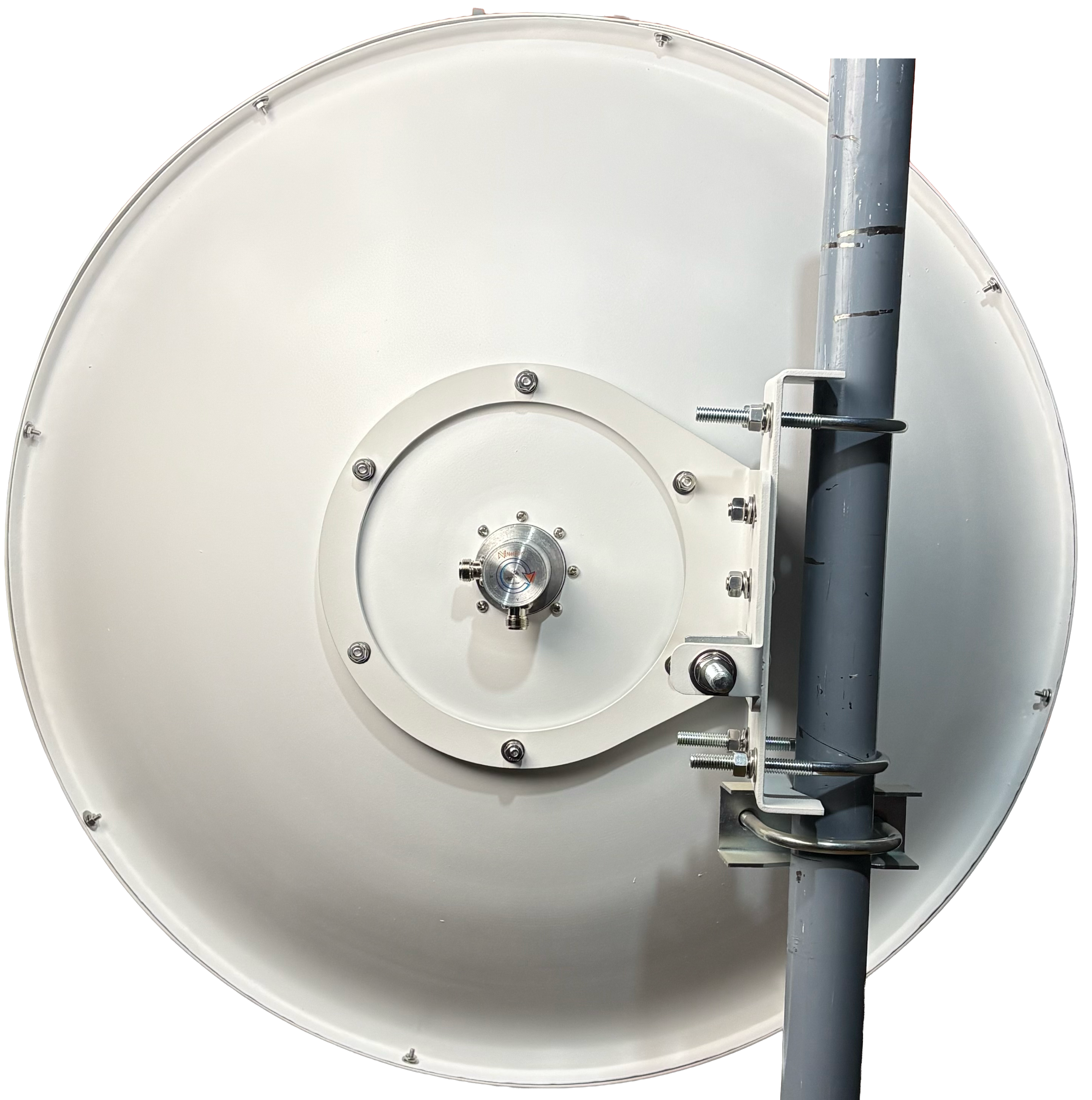

NPPROUW connectorized ultra-wideband antenna, 4.9–7.2 GHz, 24–26 dBi, 1.3 ft
NP6W-DP-1FT
1 / 5
- Gain
- 24–26 dBi
- Size
- 1.3 ft
- Range
- PTP/CPE ≤ 15 km
- Band
- 4.9–7.2 GHz
Description. The NetPoint NPPRO-UW (NP6W-DP-1FT) high-performance connectorized parabolic antenna is designed for unlicensed bands with excellent gain. Dual polarization, Dual N-female connectors, outstanding VSWR across 4.9–7.2 GHz, pre-assembled with an integrated radome — PtP backhaul, CPE, and public safety.
- Ultra wideband 4.9–7.2 GHz · cubre 6 GHz
- Gain Low 24 · Mid 25 · High 26 dBi
- connector Dual N-female · Dual slant 45°
- VSWR HPOL < 2.0 · F/B 50 dB
- Beamwidth HPOL 8.0° · VPOL 8.2°
- compatible with radios conectorizados (Ubiquiti, Cambium, Mimosa, etc.)
- Made in Mexico
- Polarization Dual slant 45°
- VSWR HPOL < 2.0
- Model
- NPPROUW
- SKU
- NP6W-DP-1FT
- Brand
- NetPoint
- Series
- NetPoint NPUW
NetPoint warranty for manufacturing defects
Request this product
Informational catalog — no online purchase. Contact sales or an authorized distributor.
Technical summary NPPROUW
4.9 – 7.2 GHz
24–26 dBi
Lightweight antenna
Dual Slant 45°
1.3 ft · Connectorized
Primary applications
- PtP backhaul
- CPE
- Public safety
Specifications
NP6W-DP-1FTElectrical specifications
| Antenna type | Antena parabólica conectorizada |
|---|---|
| Frequency | 4.9 a 7.2 GHz |
| Connector type | Dual N-female |
| Gain (dBi) | Low 24 - Mid 25 - High 26 |
| VSWR HPOL | < 2.0 |
| Beamwidth VPOL | 8.2° |
| Beamwidth HPOL | 8.0° |
| F/B ratio (dB) | 50 |
| Polarization | Dual slant 45° |
Mechanical specifications
| Velocidad máxima de supervivencia del viento | 124,27 millas con Radome |
|---|---|
| Azimuth adjustment | +/- 60 degrees |
| Elevation adjustment (°) | +/- 15 degrees |
| Mounting tube diameter, min. | 1 pulgada - 25.4mm |
| Mounting tube diameter, max. | 2.750 inch 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
| Size | 1.3 ft |
NetPoint NPPROUW is compatible with
Cambium Networks · Mimosa Networks · Ubiquiti · Radwin · Telrad · LigoWave · Astra Wireless · Zyxel · Proxim Wireless
Some possible combinations
Force 4600c
Wave MLO6
Radwin 2000D
Radwin 2000E
Radwin Alpha
RapidFire6
Stratum™ X3 – 6GHz
Zyxel FWA7
Qsr5-E
Electrical specifications NPPROUW
NPPROUW gain
Gain Low 24 / Mid 25 / High 26 dBi across the 4.9–7.2 GHz ultra-wideband.
Catalog datasheet
Manuals & complementary documents
Mechanical benefits
Pre-assembled and install-ready, with an integrated radome for reliable performance in demanding conditions.
- Low weight
- Corrosion resistance
- High light and heat reflectivity
- Hermetic sealing
- Excellent port-to-port isolation
- Reliable electrical conductivity
NetPoint feed horn
NetPoint feed horns / dipoles follow a strict process with 100% aluminum purity to channel radio power and keep frequency and VSWR stable.
NetPoint RF connector
A high-quality RF connector maximizes efficiency and helps keep VSWR stable. Feed horns use hermetic, weatherproof sealing.
Included accessories
Fiberglass radome
Integrated fiberglass radome for consistent RF performance and environmental protection.
Frequently asked questions
What frequency range does the NPPROUW cover?
The NPPROUW operates from 4.9 to 7.2 GHz — one antenna covers the full 5 and 6 GHz bands, ready for MLO radios.
What gain does the NPPROUW offer?
Per datasheet: Low 24 / Mid 25 / High 26 dBi across 4.9–7.2 GHz.
What connector does the NPPROUW use?
It uses Dual N-female connectors with dual polarization; it is a connectorized antenna for Ubiquiti, Cambium, Mimosa, and similar radios.
Is it suitable for long-distance links?
Built for PtP/CPE and public safety; the catalog lists typical ranges up to ~15 km depending on the deployment.
What is the typical VSWR?
Per datasheet, VSWR HPOL stays < 2.0 across the operating band.
What polarization does it support?
The NPPROUW uses Dual slant polarization (45°–90° by model), ideal for MIMO 2×2 backhaul.
Does it include jumpers or a radome?
The NPPROUW is connectorized (Dual N) with an integrated radome, pre-assembled and install-ready.
Is it a Mexican product?
Yes. It is made with 100% Mexican materials and developed by NetPoint R&D in Mexico.
Made in Mexico
Designed and manufactured in Mexico with 100% domestic materials by NetPoint R&D. Proudly Mexican patent.
