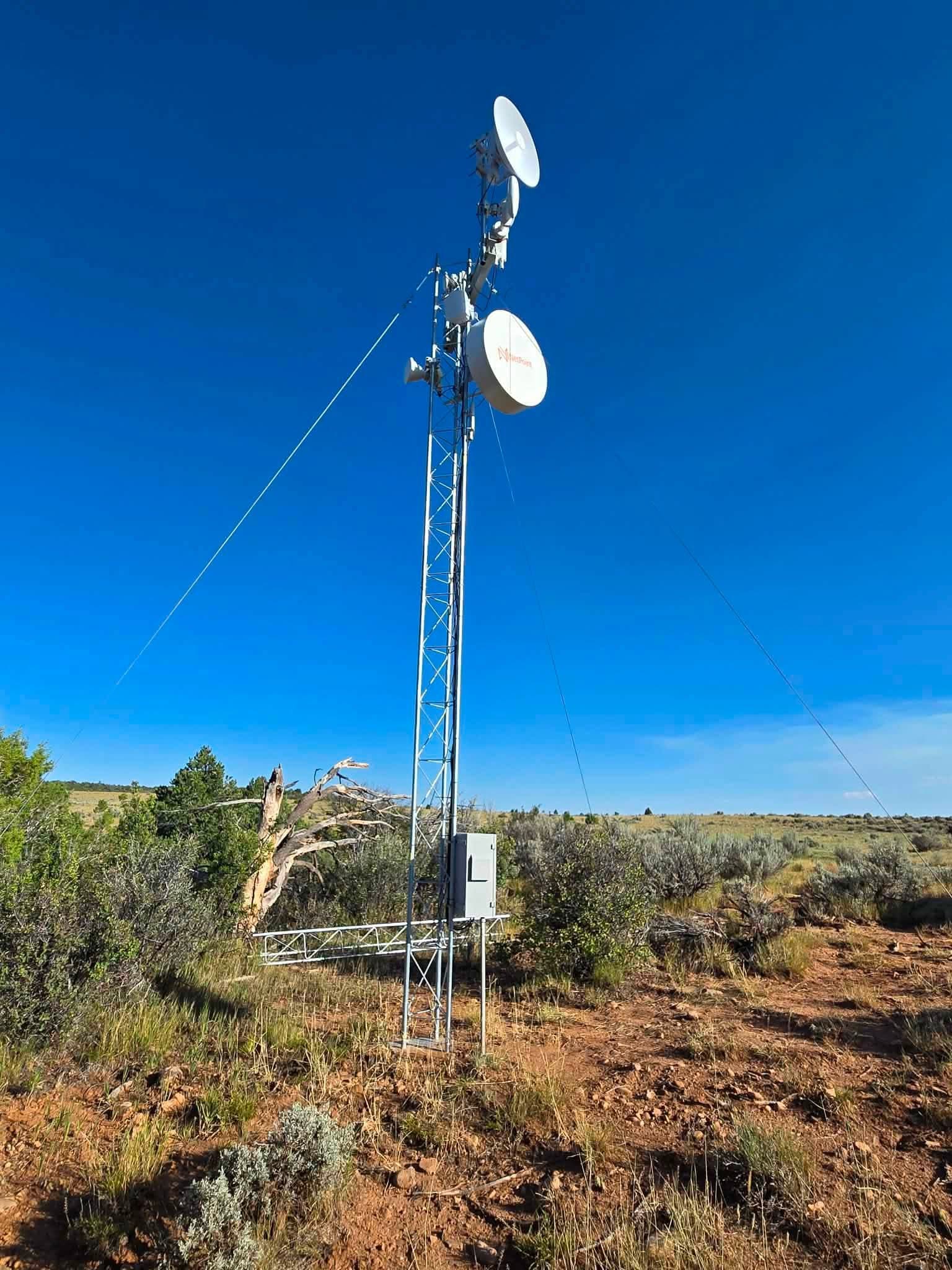

4.9–7.2 GHz

NetPoint NPUW

A multipurpose ultra-wideband antenna for high-confidence, stable MLO installations.

NPUW is a parabolic antenna for ultra-wideband MLO backhaul from 1 to 100 km, Dual N connectors (NPPROUW twist-on), N–RPSMA jumpers, gains of 26, 30, 34, and 36 dBi across 4.9–7.2 GHz — the universal antenna for ISPs.

Installation flexibility
High spectral efficiency
99.9999% availability

Radios / compatibility: Force 4600c, Wave MLO 6, Radwin 2000E/D, PTP550, Rocket AC, AF5XHD, Rocket AC GEN2, Force 400/300, NPTW-RV, C5C, Mimosa C6X/B5X.

NetPoint MLO antennas

High gain for PtP links at 5, 6, and 7 GHz

Professional parabolic antennas 4.9 – 7.2 GHz

NPPROUW

NPPROUW-DP-1.3FT

Technical specifications NPPROUW

PtP range15 km | 10 mi
CPE range15 km | 10 mi
Frequency4.9 - 7.2 GHz
GainBajo 24 - Medio 25 - Alto 26 dBi
PolarizationDual slant 45°
VSWR HPOL< 2.0
F/B ratio50 dB
BeamwidthHPOL 8.0° · VPOL 8.2°
Size1.3 ft
ConnectorTwist-on
MountingIncluido · 1–2.75 in
Wind load124.27 mph con radomo

NPPROUW datasheet See more

NPUW2

NP6W-DP-2FT

Technical specifications NPUW2

PtP range30 km | 18 mi
Frequency4.9 - 7.2 GHz
GainBaja 28 - Media 29 - Alta 30 dBi
PolarizationDual slant 45°–90°
VSWR≤ 1.5
F/B ratio≥ 49 dB
BeamwidthVPOL 4.5° · HPOL 4.4°
ISO | XDP30 dB
Sizeø 65 cm, 2 ft
ConnectorDual N-Hembra
Mountingø 40–120 mm
IncludesRadomo · Jumper N–RPSMA
Wind load180 km/h | 112 mph (op.)

NPUW2 datasheet See more

NPUW3

NP6W-DP-3FT

Technical specifications NPUW3

PtP range50 km | 31 mi
Frequency4.9 - 7.2 GHz
GainBaja 32 - Media 33 - Alta 34 dBi
PolarizationDual slant 45°–90°
VSWR≤ 1.5
F/B ratio≥ 60 dB
BeamwidthVPOL 3.5° · HPOL 3.6°
ISO | XDP30 dB
Sizeø 96 cm, 3 ft
ConnectorDual N-Hembra
Mountingø 40–120 mm
IncludesRadomo · Jumper N–RPSMA
Wind load180 km/h | 112 mph (op.)

NPUW3 datasheet See more

NPUW4

NP6W-SDP-4FT

Technical specifications NPUW4

PtP range100 km | 60 mi
Frequency4.9 - 7.2 GHz
GainBaja 34 - Media 35 - Alta 36 dBi
PolarizationDual slant 45°–90°
VSWR≤ 1.5
F/B ratio≥ 64 dB
BeamwidthVPOL 2.9° · HPOL 2.8°
ISO | XDP30 dB
Sizeø 122 cm, 4 ft
ConnectorDual N-Hembra
Mountingø 40–120 mm
IncludesRadomo · Jumper N–RPSMA
Wind load180 km/h | 112 mph (op.)

NPUW4 datasheet See more

Comparison

Model	Size	Gain	Beamwidth	Weight
NPPROUW	1.3 ft	24–26 dBi	8.0–8.2°	—
NPUW2	2 ft / ø65 cm	28–30 dBi	4.4–4.5°	5 kg
NPUW3	3 ft / ø96 cm	32–34 dBi	3.5–3.6°	12 kg
NPUW4	4 ft / ø122 cm	34–36 dBi	2.8–2.9°	20 kg

NetPoint is compatible with leading radio manufacturers

Cambium Networks · Mimosa Networks · Ubiquiti · Radwin · Telrad · LigoWave · Astra Wireless · Zyxel · Proxim Wireless
