VSWR
Per the NPUW4 datasheet, VSWR stays ≤ 1.5 across 4.9–7.2 GHz with ISO / XDP 30 dB.
NPUW4
NPUW4 ultra-wideband antenna, 4.9–7.2 GHz, 34–36 dBi, 4 ft
NP6W-SDP-4FT
- Gain
- 34–36 dBi
- Size
- 4 ft / ø 122 cm
- Range
- PTP ≤ 100 km
- Band
- 4.9–7.2 GHz
Description. The NetPoint NPUW4 parabolic antenna (NP6W-SDP-4ft) delivers high performance across licensed and unlicensed bands: dual linear polarization, N-female connector, excellent VSWR across 4.9–7.2 GHz, pre-assembled with an integrated radome — PtP backhaul, CPE, and public safety.
- Una Antenna cubre las bandas completas de 5 y 6 GHz
- Gain Baja 34 · Media 35 · Alta 36 dBi
- Beamwidth VPOL 2.9° · HPOL 2.8° · F/B ≥ 64 dB
- VSWR ≤ 1.5 · ISO / XDP 30 dB
- Compatibilidad directa con radios MLO 5 y 6
- Jumper Included N a RPSMA
- Made in Mexico
- Polarization Dual slant 45°–90°
- VSWR ≤ 1.5
- F/B ≥ 64 dB
- Model
- NPUW4
- SKU
- NP6W-SDP-4FT
- Brand
- NetPoint
- Series
- NetPoint NPUW
NetPoint warranty for manufacturing defects
Request this product
Informational catalog — no online purchase. Contact sales or an authorized distributor.
Technical summary NPUW4
4.9 – 7.2 GHz
34–36 dBi
Lightweight antenna
Dual Slant
4 ft · ø122 cm
Primary applications
- PtP backhaul
- CPE
- Public safety
Specifications
NP6W-SDP-4FTElectrical specifications
| Rango de frecuencia | 4.9 - 7.2 GHz |
|---|---|
| Antenna type | Antena parabólica |
| Gain (dBi) | Baja 34 dBi - Media 35 dBi - Alta 36 dBi |
| Beamwidth VPOL | 2.9° |
| Beamwidth HPOL | 2.8° |
| Relación frente/espalda (FB) | ≥ 64 dB |
| VSWR | ≤ 1.5 |
| Impedance (Ohms) | 50 |
| Polarization | Dual slant 45°–90° |
| ISO | 30 dB |
| XDP | 30 dB |
Mechanical specifications
| Diameter | ø 122 cm, 4 ft |
|---|---|
| Radomo | Fibra de vidrio |
| Peso de la antena | 20 kg | 44 lb |
| Peso del soporte | 4.5 kg | 9.9 lb |
| Operating wind load | 180 km/h (112 mph) |
| Carga de viento de supervivencia | 240 km/h (149 mph) |
| Ajuste de acimut | ± 20° |
| Ajuste de elevación | ± 25° |
| Ajuste fino de polarización | 5° |

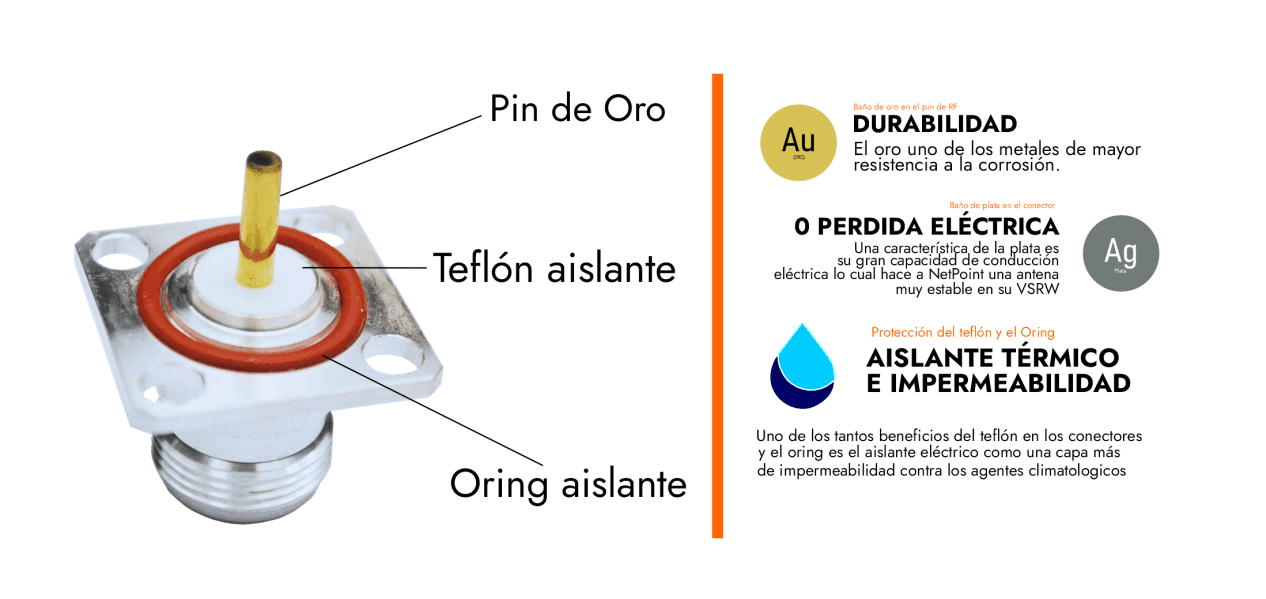

| Connector type | Dual N-Hembra |
| Temperatura de funcionamiento | -49 a +140 F° | -45 to +60 C° |
| Instalación en mástil | ø 40 - 120 mm |

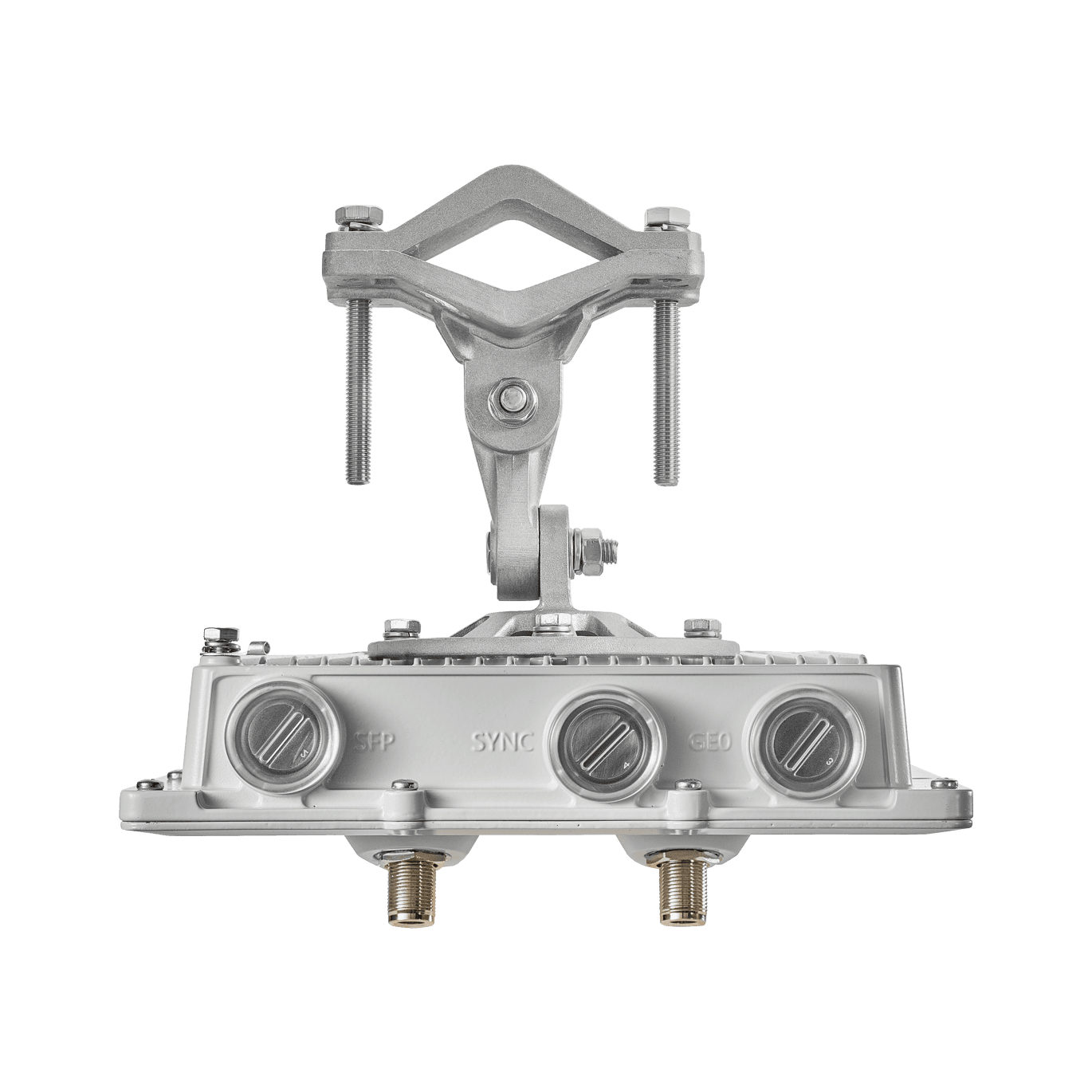

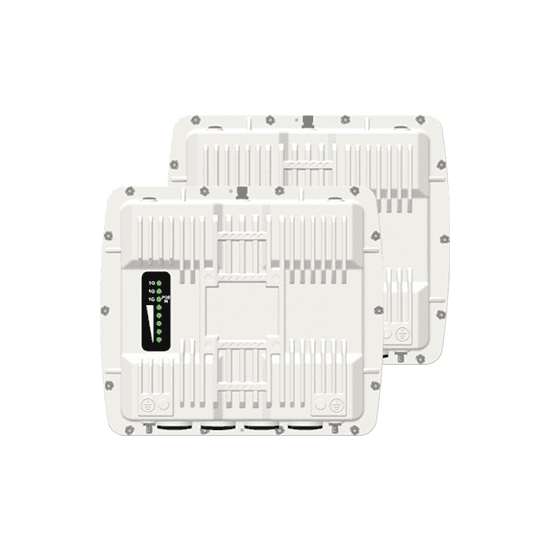

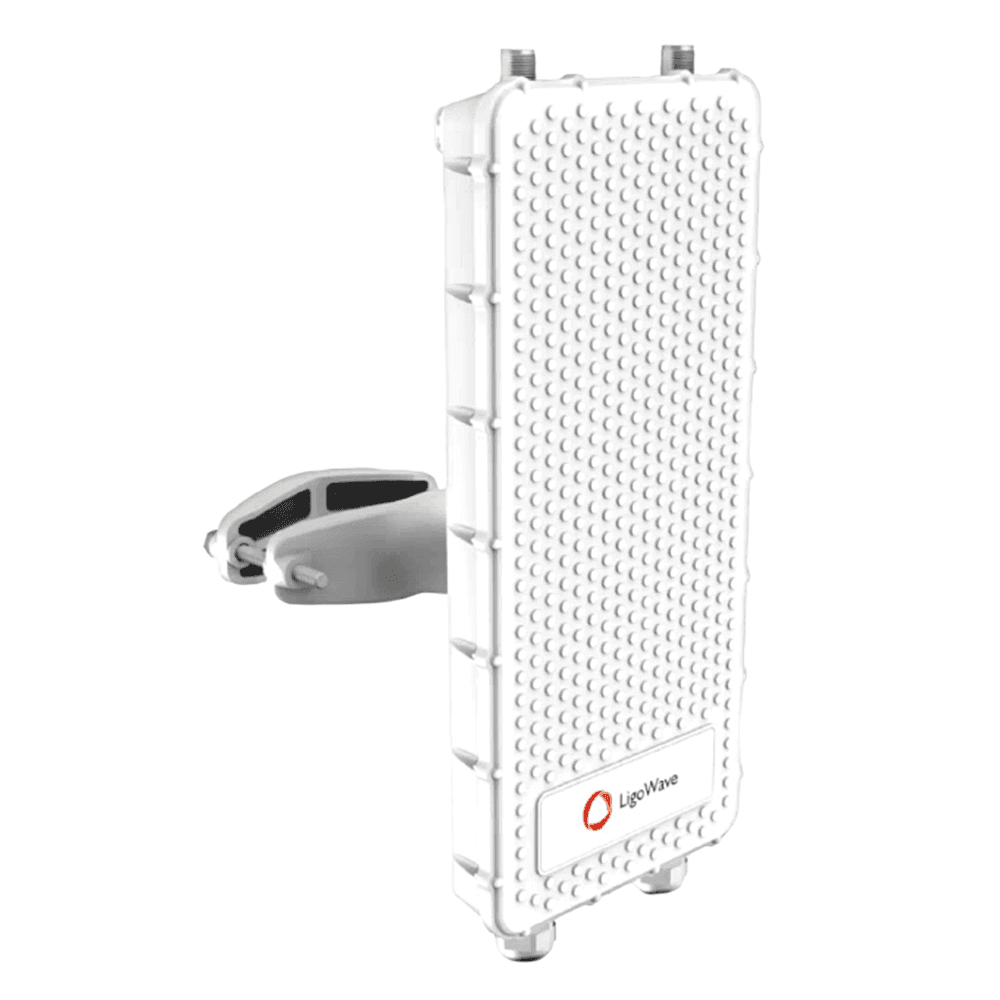

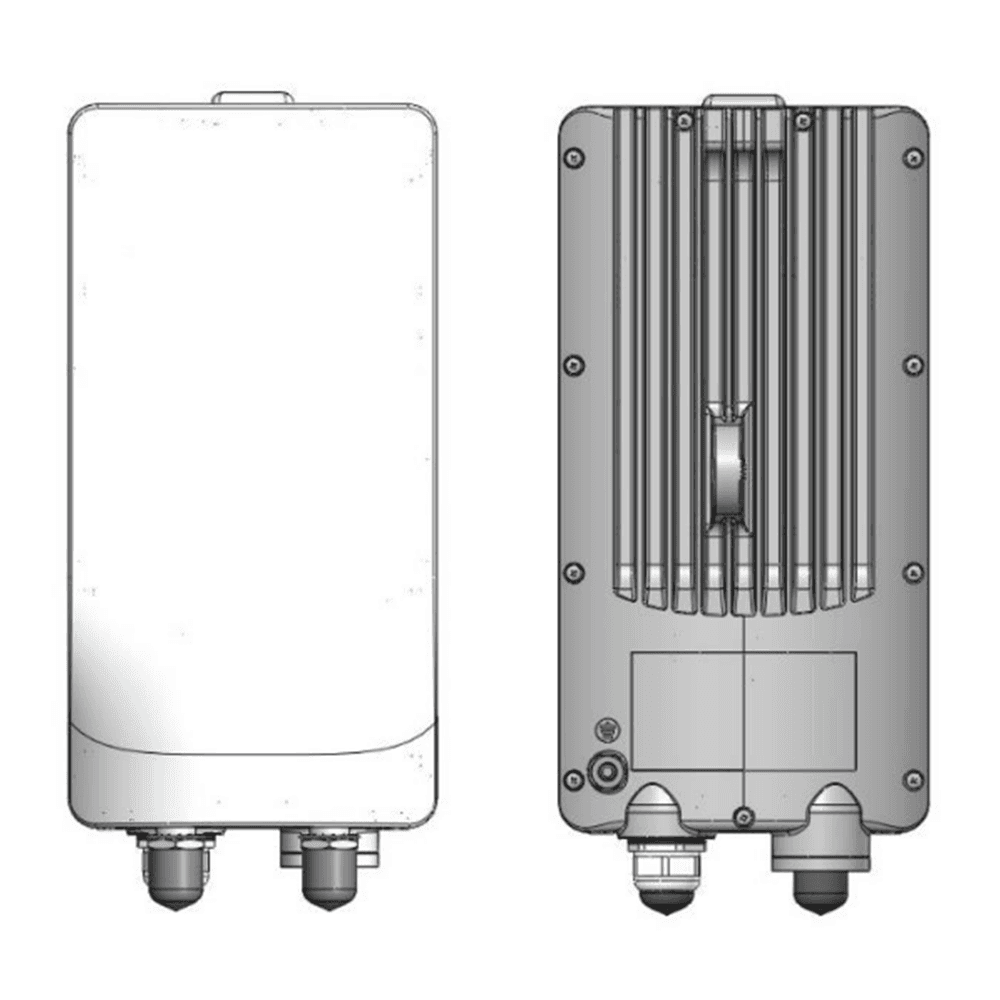

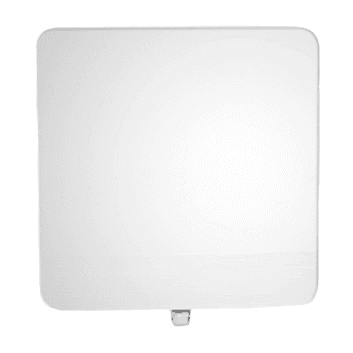

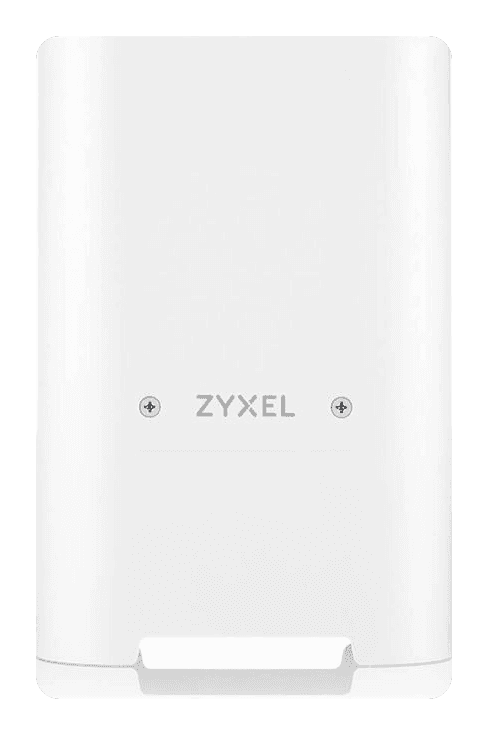

NetPoint NPUW4 is compatible with
Cambium Networks · Mimosa Networks · Ubiquiti · Radwin · Telrad · LigoWave · Astra Wireless · Zyxel · Proxim Wireless
Electrical specifications NPUW4
NPUW4 gain
Gain Low 34 / Mid 35 / High 36 dBi — beamwidth VPOL 2.9° · HPOL 2.8°.

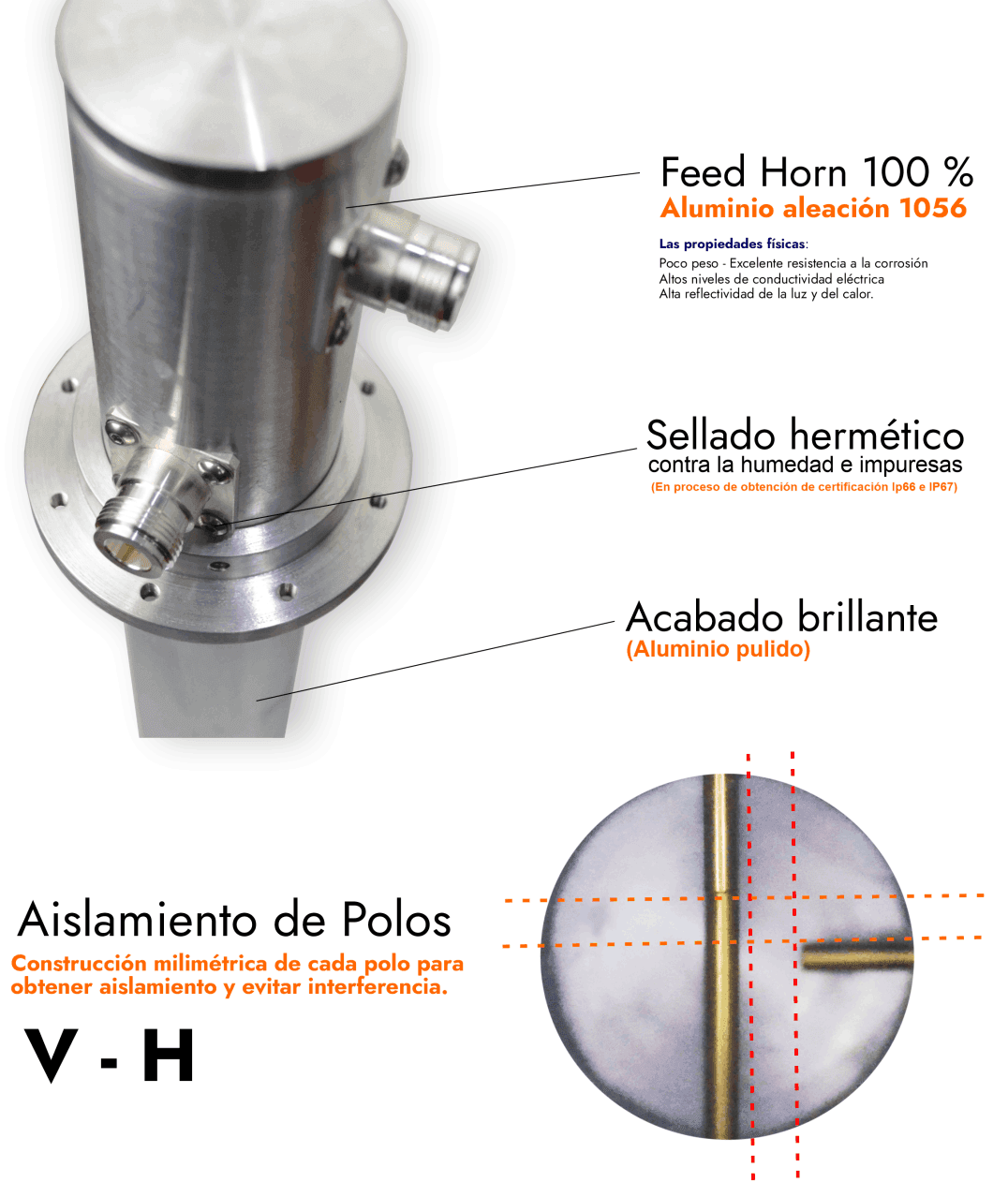

Mechanical benefits
Mechanics set a great antenna apart — designed to make tower work easier for installers.
- Low weight
- Corrosion resistance
- High light and heat reflectivity
- Hermetic sealing
- Excellent port-to-port isolation
- Reliable electrical conductivity
Included accessories
N–RPSMA jumper
N–RPSMA jumper included with the antenna per datasheet — compatible with Ubiquiti, Mimosa, and Cambium MLO radios.
Fiberglass radome
Integrated fiberglass radome for consistent RF performance and environmental protection.
Frequently asked questions
What frequency range does the NPUW4 cover?
The NPUW4 operates from 4.9 to 7.2 GHz — one antenna covers the full 5 and 6 GHz bands, ready for MLO radios.
What gain does the NPUW4 offer?
Per datasheet: Low 34 / Mid 35 / High 36 dBi, with VPOL 2.9° and HPOL 2.8° beamwidth.
What connector does the NPUW4 use?
Dual N-female with an included N–RPSMA jumper. Compatible with MLO 5 and 6 radios.
Is it suitable for long-distance links?
Longest reach in the NPUW family; the catalog lists up to ~100 km depending on radio and path.
What is the typical VSWR?
Per datasheet, VSWR stays ≤ 1.5 across the operating band.
What polarization does it support?
The NPUW4 uses Dual slant polarization (45°–90° by model), ideal for MIMO 2×2 backhaul.
Does it include jumpers or a radome?
The NPUW4 includes a fiberglass radome and an N–RPSMA jumper per the datasheet.
Is it a Mexican product?
Yes. It is made with 100% Mexican materials and developed by NetPoint R&D in Mexico.
Made in Mexico
Designed and manufactured in Mexico with 100% domestic materials by NetPoint R&D. Proudly Mexican patent.
