VSWR
Per NPPROS34 (NPPRO5-S-HP-3FT) datasheet, VSWR HPOL stays < 2.0 across 4.9–6.4 GHz (beam 4.2°/4.0°, F/B > 41 dB).
NPPROS34

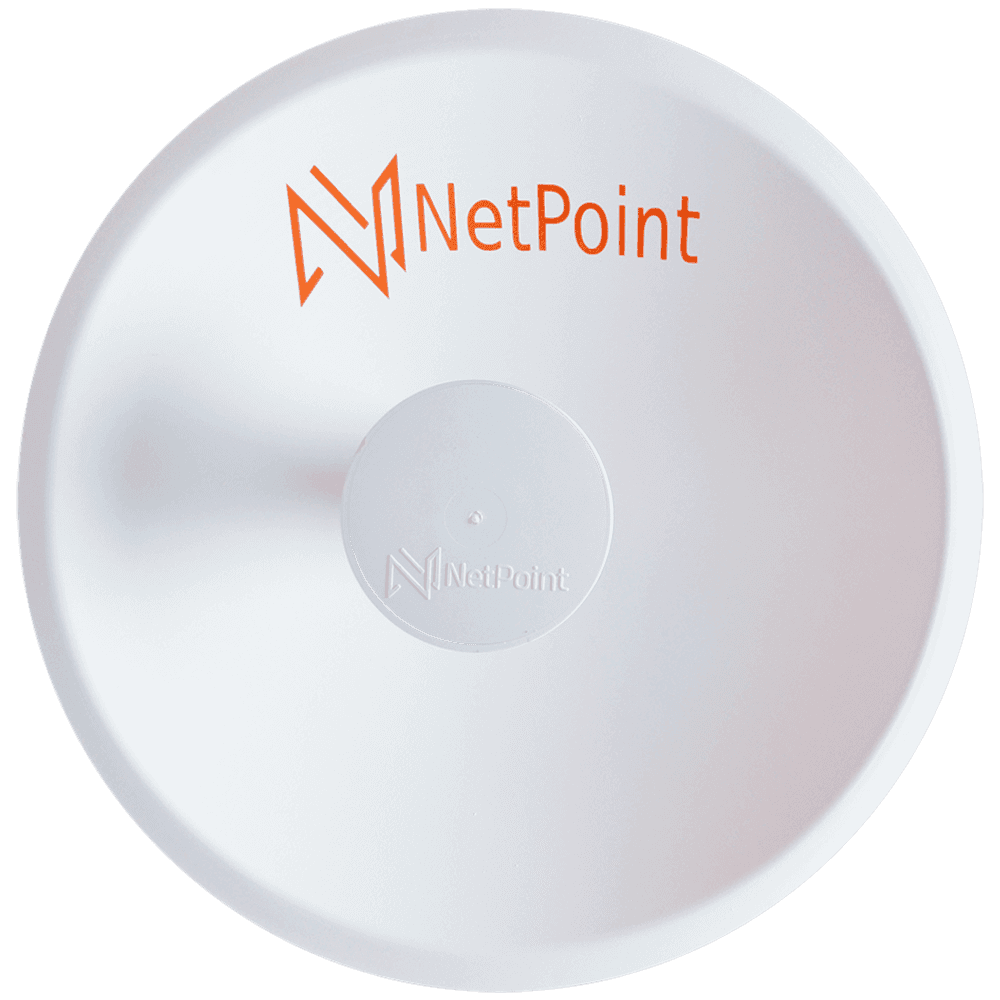

NPPROS34 Twist-On antenna, 32–34 dBi, 3 ft
NPPRO5-S-HP-3FT
- Gain
- 34 dBi (32–34 dBi)
- Size
- 3 ft / 100 cm
- Range
- ≤ 50 km
- Band
- 4.9–6.4 GHz
Description. La parabolic antenna twist-on NPPROS34 (NPPRO5-S-HP-3FT) es compatible with B5x y C5X, con VSWR excepcional en 4.9–6.4 GHz. Premontada con radome integrado para PTP backhaul, CPE y seguridad pública.
- Twist-on Mimosa B5X / C5X · cero pérdida
- Gain Bajo 32 · Medio 33 · Alto 34 dBi
- Beamwidth VPOL 4.2° · HPOL 4.0° · F/B > 41 dB
- VSWR HPOL < 2.0 · Dual slant 45°
- compatible with adaptador NPTW
- Made in Mexico
- Polarization Dual slant 45°
- VSWR HPOL < 2.0
- F/B > 41 dB
- Beamwidth VPOL 4.2° · HPOL 4.0°
- Model
- NPPROS34
- SKU
- NPPRO5-S-HP-3FT
- Brand
- NetPoint
- Series
- NetPoint NPPRO
NetPoint warranty for manufacturing defects
Request this product
Informational catalog — no online purchase. Contact sales or an authorized distributor.
Technical summary NPPROS34
4.9 – 6.4 GHz
32–34 dBi
Twist-on
Dual Slant 45°
3 ft · 100 cm
Primary applications
- PtP backhaul
- CPE
- Public safety
Specifications
NPPRO5-S-HP-3FTElectrical specifications
| Model | NPPROS34 |
|---|---|
| SKU | NPPRO5-S-HP-3FT |
| Antenna type | Plato modular twist-on |
| Frequency | 4.9 - 6.4 GHz |
| Connector type | Twist-on |
| Gain (dBi) | Bajo 32 - Medio 33 - Alto 34 |
| VSWR HPOL | < 2.0 |
| Beamwidth VPOL | 4.2° |
| Beamwidth HPOL | 4.0° |
| F/B ratio (dB) | > 41 |
| Polarization | Dual slant 45° |
Mechanical specifications
| Size | 3 ft | 100 cm |
|---|---|
| Azimuth adjustment | +/- 60 grados |
| Ajuste de elevación | +/- 20 grados |
| Diámetro mástil mín/máx | 1 in – 2.750 in |
| Temperatura de funcionamiento | -45 a +60 C° |
| Compatible | Adaptador NPTW |
NetPoint NPPROS34 is compatible with
Cambium Networks · Mimosa Networks · Ubiquiti · Radwin · Telrad · LigoWave · Astra Wireless · Zyxel · Proxim Wireless
Electrical specifications NPPROS34
NPPROS34 gain
Gain Low 32 / Mid 33 / High 34 dBi across 4.9–6.4 GHz.
Mechanical benefits
Mechanics set a great antenna apart — designed to make tower work easier for installers.
- Low weight
- Corrosion resistance
- High light and heat reflectivity
- Hermetic sealing
- Excellent port-to-port isolation
- Reliable electrical conductivity
Frequently asked questions
What frequency range do NPPROS34 antennas cover?
NPPROS34 antennas operate in the extended 5.9–7.2 GHz range, improving spectrum use in highly congested areas.
What gain do NPPROS34 antennas offer?
Per the NPPROS34 datasheet, gain is Low 32 / Mid 33 / High 34 dBi.
What connector do NPPROS34 antennas use?
They use low-loss N-female connectors and ship with N–SMA jumpers compatible with Mimosa, Cambium, and Ubiquiti radios.
Are they suitable for long-distance links?
Yes. NPPROS34 antennas are designed for PtP links up to 100 km, especially with high-sensitivity radios and efficient modulation.
What is the typical VSWR?
Per datasheet, VSWR HPOL stays < 2.0.
What polarization do they support?
NPPROS34 antennas use dual-slant ±45° polarization, ideal for MIMO 2×2 efficiency in backhaul environments.
What materials are used? Are they weatherproof?
Yes. They use treated aluminum with anti-corrosion coating and a fiberglass radome resistant to UV and rain.
Can they be used with 6 GHz Wi‑Fi 6E or licensed LTE radios?
Yes. They work with radios in the upper 6 GHz band, including Wi‑Fi 6E backhaul, LTE-LAA, and custom solutions.
What is the recommended minimum link distance?
They can work on short hops, but a minimum of about 3 km is recommended to avoid overpower and protect the Fresnel zone.
Is a special tower or mast required?
Mount NPPROS34 antennas on 2-inch steel masts or towers at least 6 m high, with precise aiming and firm anchoring.
What accessories can I use?
You can add NetPoint RF shields, wind-load radomes where needed, and the SANP stabilizer arm for more professional installs.
Made in Mexico
Designed and manufactured in Mexico with 100% domestic materials by NetPoint R&D. Proudly Mexican patent.
